The Plate Heat Exchanger Automatic High-Pressure Cleaning System is an intelligent industrial cleaning solution specifically engineered for plate heat exchangers. Utilizing ultra-high-pressure water jet technology, it effectively removes stubborn deposits such as scale, sludge, oil, and biological fouling from plate surfaces, helping restore thermal efficiency, reduce energy consumption, and extend equipment service life.
Working Principle
The system employs through-type high-pressure water jet technology, where a high-pressure pump unit pressurizes water and delivers it through arrayed nozzles or adjustable-angle spray heads to form a uniform, dense high-velocity water jet. The high-velocity fluid penetrates the gaps between plates, using kinetic impact energy to dislodge deposits from plate surfaces, which are then carried away by circulating water. The entire process uses no chemical agents, making it a purely physical cleaning method.
Key Features

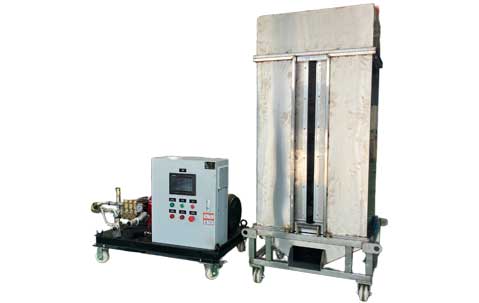

Fully Automated Operation: Equipped with a PLC intelligent control system and HMI touch screen interface, supporting one-touch start. The system automatically handles loading, positioning, cleaning, flipping, and unloading, significantly reducing manual labor.
High Cleaning Efficiency: With a stable high-pressure pump unit providing adjustable pressure, some systems achieve cleaning efficiency 2-3 times faster than manual methods, substantially reducing downtime for maintenance.
Non-Damaging Cleaning: A programmable 2-axis motion mechanism precisely controls the nozzle trajectory, preventing localized over-blasting and protecting the plate’s anti-corrosion coating—a significant improvement over traditional steel brush methods.
Double-Side Cleaning: Some models are equipped with an automatic turnover mechanism that rotates plates 180° for thorough double-side cleaning without manual intervention.
Environmentally Friendly: The high-pressure water jet process eliminates the need for chemical agents. Wastewater can be centrally treated and recycled, aligning with green manufacturing standards.
Applications
Widely used in chemical processing, food and beverage, pharmaceutical, thermal power, HVAC, metallurgy, and other industries for plate heat exchanger maintenance and cleaning.
