Name |
Details |
|
Model |
GYB-1-50/160 |
|
Rate Pressure |
160 bar / 16Mpa |
|
Water flow |
50 L/min |
|
Plunger diameter |
18mm |
|
Inpurt speed |
1480 rpm |
|
Pump speed |
1480 rpm |
|
Plunger stroke |
28mm |
|
electric motor |
Power:15kw |

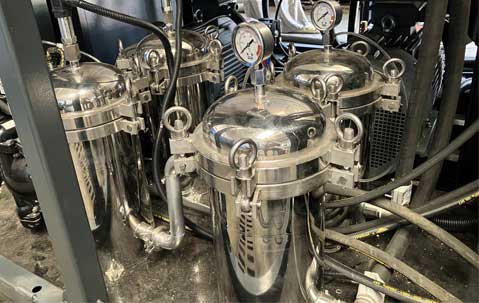

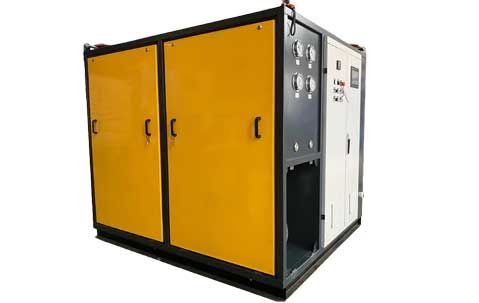

The complete system integrates a high-pressure hot water cleaning unit, heating device, 3D cleaning mechanism, diaphragm pump, and multi-stage filtration system. It covers functional design, structure, performance, and configuration of the entire system.

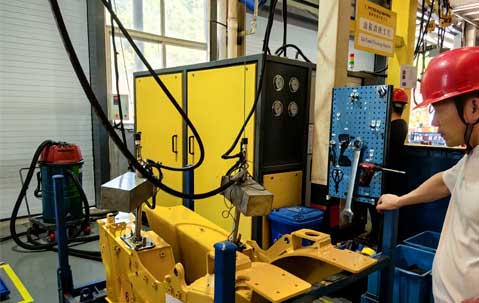

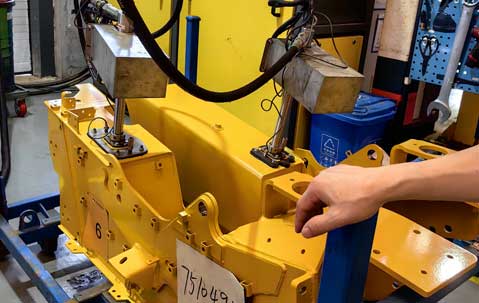

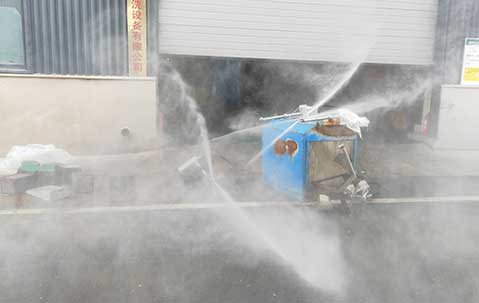

The cleaning actuator is a 3D rotating spray head, enabling 360° omnidirectional cleaning.
The control system adopts PLC frequency conversion, allowing real-time control, protection, and sensing of each operational stage.
The hot water heating unit features a 60kW electric heating box, maintaining a constant 60°C output temperature for prolonged operation.

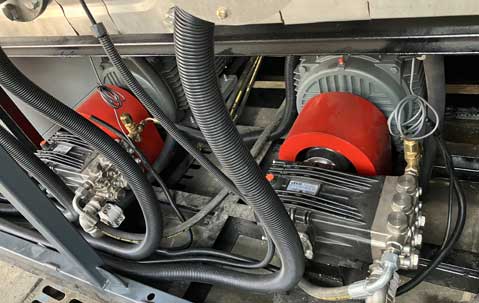

The pump station has a flow rate of 50L/min, a rated pressure of 160 bar (16 MPa), and a single-unit power of 15kW.

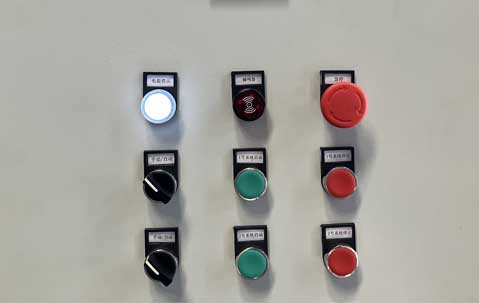

The entire system is equipped with one centralized control cabinet.
|
Name |
Quantity |
|
High pressure hose |
50 meters |
|
High pressure gun |
1 set |
|
3D rotating nozzle |
1pc |
|
cleaning device |
1pc |
|
Spare Parts |
1 set |
Low manual labor intensity – Reduces operator workload.
Short cleaning time & high efficiency – Enhances productivity with rapid processing.
Non-damaging to workpieces – Ensures part integrity during cleaning.
Adjustable pressure & speed – Precise control over冲洗 parameters.
Stable quality with imported components – Reliable performance using premium parts.
Hot water cleaning – Delivers superior efficiency and results.
Uses pure/recirculated water (no solvents) – Eliminates chemical additives and secondary pollution.
