Name |
Details |
|
Model |
GYB-5-85/1500 |
|
Rate Pressure |
1500 bar / 21750 psi |
|
Water flow |
85 L/min |
|
Plunger diameter |
28mm |
|
Inpurt speed |
1480 rpm |
|
Pump speed |
366 rpm |
|
Plunger stroke |
120 mm |
|
Diesel engine drive |
Power:291kw |
1.For the machine, pump is use the tech. of Germany WOMA.
2. Pressure is stable and reliable, easy to be adjust.
3. It is installed with a high-pressure alarm and high-temperature alarm for water conservation.
4. The high pressure gun is use the stainless steel material, Max pressure 1500bar
5. Has two filter, for inlet water filter out. Could be filter out the tiny particles from the inlet water. Good for long-working life of the pump.
6. big power,strong
7. With a high-pressure alarm and high-temperature alarm for water conservation.
8. Could be used on starch factory, steel mill, chemical plant, power plant, for cleaning and maintenance.

|
Name |
Quantity |
|
High pressure hose |
50 meters |
|
High pressure gun |
1 set |
|
Fan-shaped nozzle |
2 pcs |
|
Cylinder-shaped nozzle |
2 pcs |
|
Flexible gun |
10M |
|
Flexible Gun Nozzle |
4pcs |
|
Steel Gun |
1.5M |
|
Steel Gun Nozzle |
4pcs |
|
Foot control Valve |
1pc |
|
Spare Parts |
1 set |







1.Heat Exchanger Cleaning: Efficiently removes fouling, scale, polymers, and coke deposits from tube bundles (shell & tube) and plate heat exchangers in refineries and chemical plants.
2.Chemical Plant Maintenance: Cleaning reactors, columns, and pipelines; removing process residue and hazardous materials during turnarounds.
3.Power Generation: Descaling boiler tubes, condensers, and air preheaters to restore thermal efficiency and reduce downtime.
4.Steel Mills: Descaling steel surfaces, unclogging slag taps, and cleaning cooling lines and hydraulic systems.
5.Surface Preparation: Hydro-blasting and preparing concrete and metal surfaces for coating or repair in industrial facilities.
6.General Industrial Cleaning: High-flow flushing of large diameter pipes, tanks, and storage vessels.

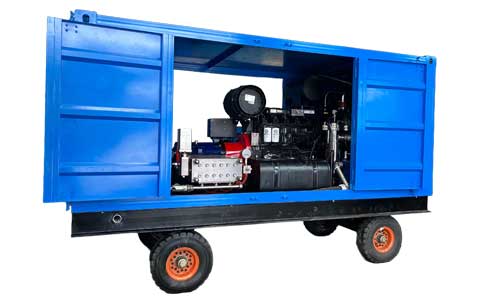

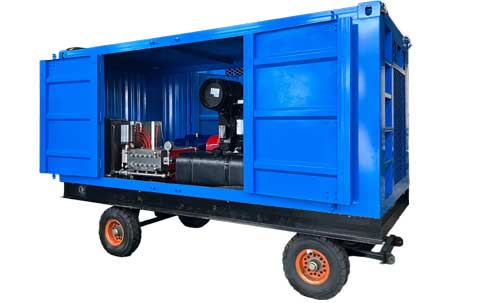

Engineered for the most demanding industrial environments, this 1500 bar diesel-driven unit is the go-to solution for mission-critical maintenance across heavy industries.
In chemical plants and refineries, it excels at decoding and descaling heat exchangers and condenser bundles, effectively removing stubborn polymerization deposits to ensure optimal heat transfer. For the power generation industry, it restores efficiency by cleaning boiler tubes, economizers, and cooling systems. In steel mills, it provides the high-pressure punch needed for heavy descaling and clearing slag from critical equipment.
Beyond heat exchanger maintenance, its high flow rate (85 LPM) makes it equally effective for general plant turnaround services, pipe flushing, and surface preparation, ensuring that operations in chemical, power, and steel facilities run reliably and safely.
