high pressure reactor tank cleaning system hydro jet cleaner machine

Product Details

Name

Details

Model

GYB-5-80/1000

Rate Pressure

1000 bar /14500 psi

Water flow

80L/min

Plunger diameter

28mm

Inpurt speed

1480 rpm

Pump speed

366 rpm

Plunger stroke

95 mm

electric motor

160kw

PRODUCT PERFORMANCE

1. reduced downtimes thanks to faster cleaning

2. reduced downtimes thanks to faster cleaning

3. no evacuation of the container necessary

4. no evacuation of the container necessary

5. process-integrated operation via the process control system

6. process-integrated operation via the process control system

7. cold, hot-cleaning with or without cleaning additives

8.cold, hot-cleaning with or without cleaning additives

9. more occupational safety without personnel in the container

10. can also be used up to Ex Zone 0 and 20

CONFIGURATION LIST

Name

Quantity

High pressure hose

50 meters

3D rotating nozzle

1 set

Spare Parts

1 set

APPLICATION FIELD

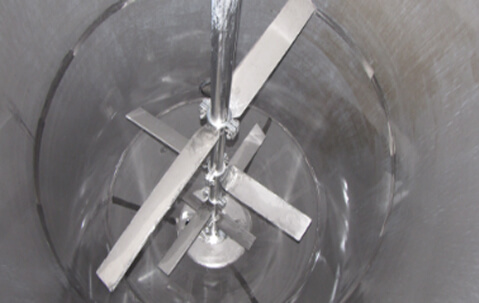

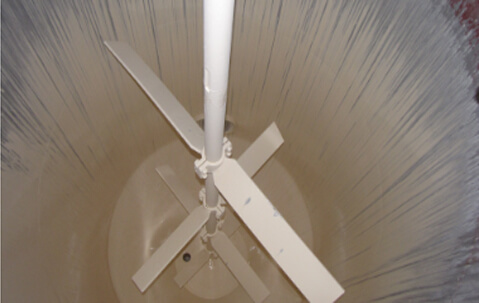

Regular high pressure cleaning of reactor containers not only ensures a clean process, it also supports production times and stabilizes sensitive processes. Complex and hard-to-reach geometries can also be cleaned of all accumulated deposits with the high pressure cleaning. Areas of use for the GUANGYUAN cleaning the interior of tanks are extremely varied. The cleaning system used always depends on the type of dirt being removed. The thorough cleaning of boilers, autoclaves, IBC containers, all kinds of tanks or even silos and spray towers is no problem. GUANGYUAN offers individual for maintaining reactor cleanliness, both for the chemicals industry and for plastic production or for water and wastewater treatment. Whether barrel, mixing container, reactor or storage container, angled or round – no problem for the high pressure systems from GUANGYUAN!
