Name |
Details |
|
Model |

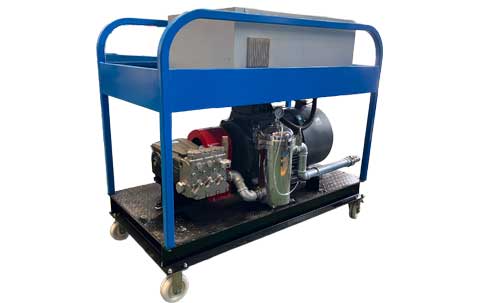

GYB-2-155/120 |
|
Rate Pressure |
120 bar |
|
Water flow |
155L/min |
|
Plunger diameter |
18mm |
|
Inpurt speed |
1480 rpm |
|
Pump speed |
1480rpm |
|
Plunger stroke |
28 mm |
|
electric motor |
37kw |
✔ Full 360° Coverage
Patented 3D rotation technology ensures complete interior surface cleaning
✔ High-Impact Jets
Optimized nozzle design delivers 10-15% greater impact force than conventional systems
✔ Adaptable Configuration
Modular design compatible with reactors from 500L to 20,000L capacity
✔ Corrosion-Resistant
Constructed with 316L stainless steel or optional Hastelloy alloys
✔ Low Maintenance
Seal-free magnetic drive mechanism reduces downtime by 40%
✔ATEX-certified options available for hazardous environments (chemical/pharmaceutical industries).
✔Water and Cost Saving
Closed-loop filtration allows water recycling, reducing consumption by up to 60% compared to manual washing.
✔Versatile Compatibility
Suitable for reactors from 5m³ to 70m³, including stainless steel, enamel-lined, and glass-lined types.
|
Name |
Quantity |
|
High pressure hose |
50 meters |
|

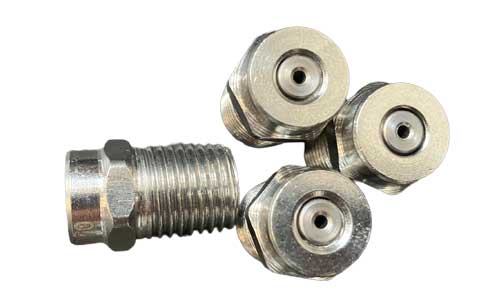

3D rotating nozzle |
1 set |
|
Spare Parts |
1 set |
Efficient Cleaning: High-pressure water jets deliver powerful cleaning performance, effectively removing sludge, sediment, and contaminants from tank walls and floors.
Environmentally Friendly: Uses only water, eliminating the need for chemical cleaners and reducing environmental impact.
Safe Operation: Designed with safety features to prevent damage to tank structures and ensure operator safety.
Cost-Effective: Reduces maintenance costs by extending the lifespan of storage tanks and preventing costly repairs.
User-Friendly: Compact and easy to maneuver, with intuitive controls for hassle-free operation.
Compliance Ready: Helps gas stations meet environmental and safety regulations for tank maintenance.
Durable Design: Built to withstand harsh conditions, ensuring long-term reliability and performance.
Chemical Industry: PVC, acrylic emulsion, rubber residue removal.
Pharmaceutical: GMP-compliant reactor cleaning.
Food Processing: Hygienic cleaning without chemical contamination.
CIP (Clean-in-Place) systems
Batch changeover cleaning
