Name |
Details |
|
Model |
GYB-6-8/2000 |
|
Rate Pressure |
2000 bar / 29000 psi |
|
Water flow |
8 L/min |
|
Plunger diameter |
18mm |
|
Inpurt speed |
1480 rpm |
|
Pump speed |
1000 rpm |
|
Plunger stroke |
28 mm |
|
Electric motor power |
37kw,380V 50HZ |
1.For the machine, pump is use the tech. of Germany WOMA.
2. Pressure is stable and reliable, easy to be adjust.
3. It is installed with a high-pressure alarm and high-temperature alarm for water conservation.
4. The high pressure gun is use the stainless steel material, Max pressure 2000bar
5. Has two filter, for inlet water filter out. Could be filter out the tiny particles from the inlet water. Good for long-working life of the pump.
6. big power,strong
7. With a high-pressure alarm and high-temperature alarm for water conservation.
8. Could be used on starch factory, steel mill, chemical plant, power plant, for cleaning and maintenance.
|
high pressure hose |
100M |
|
high pressure nozzle |
4PCS |
|
High pressure gun |
1pc |

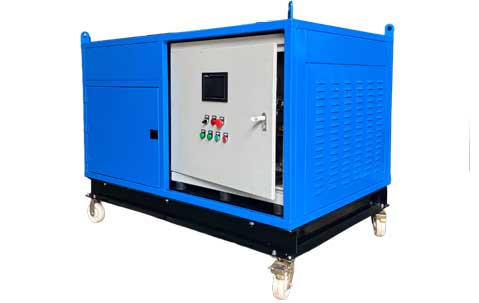

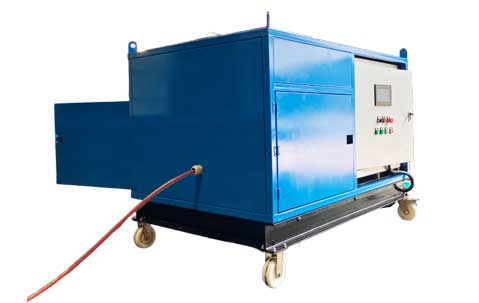

The principle of GYB-6 GUANGYUAN concrete roughening by ultra-high pressure water jet equipment: Use of water cutting technology to pull out the rough surface with textures on the concrete base surface and inner wall board through high-pressure water. The tile glue can penetrate into the interior of the wall, making the tile and the wall more stable and reducing the base layer residual laitance, mold release agent, etc. produce hidden quality hazards of hollow drum.
The principle of GYB-6 GUANGYUAN concrete roughening by ultra-high pressure water jet equipment: Use of water cutting technology to pull out the rough surface with textures on the concrete base surface and inner wall board through high-pressure water. The tile glue can penetrate into the interior of the wall, making the tile and the wall more stable and reducing the base layer residual laitance, mold release agent, etc. produce hidden quality hazards of hollow drum.
Advantages of GYB-6 GUANGYUAN concrete roughening by ultra-high pressure water jet equipment:
★The cleaning speed is fast, the efficiency is high, and the chiseling and washing are carried out at the same time, which improves economic efficiency
★The high-pressure cleaner machine can flush out the emulsified skin on the concrete surface, avoiding the drawback of a large amount of concrete loss caused by manual chiseling.
★Prevent damage to the internal structure of concrete.
★Reduce construction site dust, avoid pollution to the working environment, improve the working environment of operators, and adapt to the requirements of civilized construction.
Application areas: concrete roughening,roads, wharf construction, dams, hydro power stations, tunnels, bridges and other concrete buildings.
