High pressure water jet aluminum formwork cleaning system

Product Details

Name

Details

Model

GYB-5-50/1200

Rate Pressure

1200bar(17400psi)

Water flow

50L/min

Plunger diameter

22mm

Inpurt speed

1480 rpm

Pump speed

366 rpm

Plunger stroke

120 mm

Electric motor

132kw

Dimension

3200mm length*1600mm width*1700mm height

PRODUCT PERFORMANCE

1.High pressure water jet cleaning will not cause physical damage to aluminum formwork, and can better maintain the smooth surface of the aluminum formwork

2.The cleaning speed is several times or even dozens of times than traditional methods

3.Avoiding the harm and insecurity of chemicals in the tank to the human body

CONFIGURATION LIST

high pressure hose

30M

Cleaning device

1set

High pressure gun

1pc

High pressure nozzle

4pcs

APPLICATION FIELD

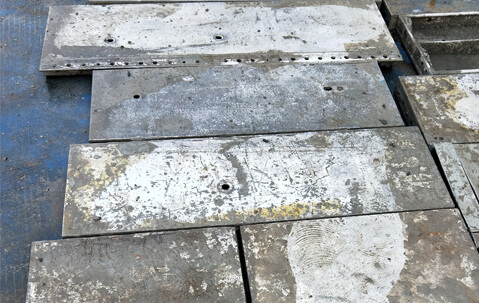

1.Cleaning of building formwork

2.Workpiece surface cleaning
