Name |
Details |
|
Model |
GYB-5-80/1000 |
|
Rate Pressure |
1000bar(15kpsi) |
|
Water flow |
80L/min |
|
Plunger diameter |
28mm |
|
Inpurt speed |
1480 rpm |
|
Pump speed |
366 rpm |
|
Plunger stroke |
120 mm |
|
Electric motor |
160kw |
|
Dimension |
3200mm length*1600mm width*1700mm height |
1.High pressure water jet cleaning will not cause physical damage to the reactor, and can better maintain the smooth surface of the reactor, making it difficult for scaling substances to adhere to the reactor
2.The cleaning speed is several times or even dozens of times than traditional methods
3.Avoiding the harm and insecurity of chemicals in the tank to the human body
|
high pressure hose |
30M |
|

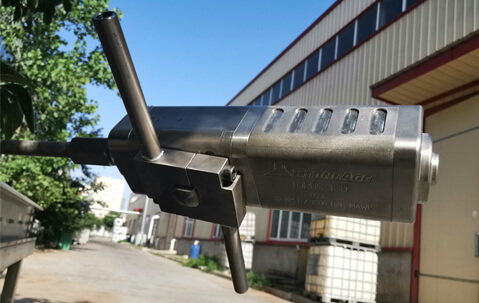

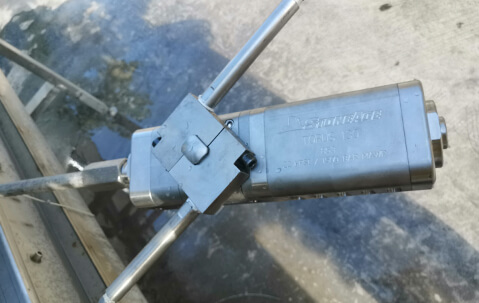

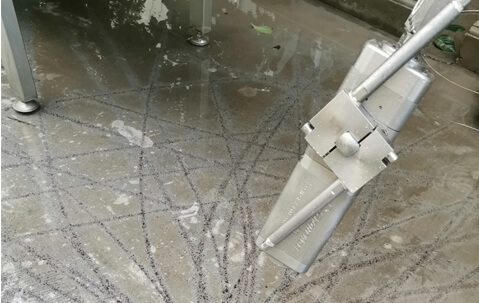

3D rotating nozzle |
1set |
|
High pressure gun |
1pc |
|
High pressure nozzle |
4pcs |

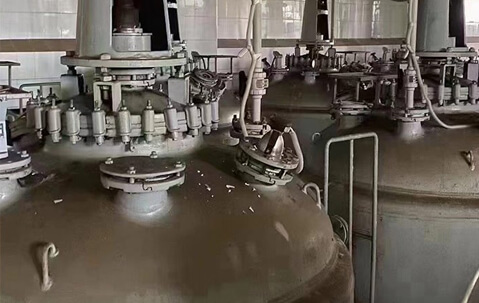

1.Chemical Plant Reactor Cleaning
2.Pharmaceutical Factory water jet Cleaning
3.Ton barrel water jet cleaning

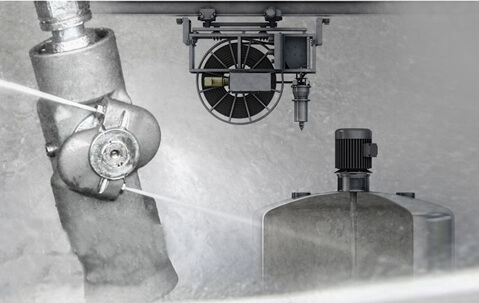

The kinetic energy of high-pressure water jets is used to smash the hard dirt on the inner wall of the reactor and the surface of the agitator, thereby stripping and removing it. The three-dimensional automatic rotating sprinkler expansion mechanism is installed on the reactor inlet hole, and the expansion rod extends into the reactor. The expansion mechanism can be controlled manually, electrically, and hydraulically, allowing the expansion rod to expand and move in the reactor and around the inner wall of the reactor. During movement, the expansion rod can avoid obstacles in the reactor. According to the actual situation, a three-dimensional automatic rotating nozzle can be selected. When the three-dimensional automatic rotating nozzle rotates horizontally, the rotating torque formed by the water jet drives the nozzle to rotate in the vertical plane.
Please contact us for free quotation by form below. We promise the quickest response within 24 hours:
