Breaking Traditional Bottlenecks: Entering the Era of Fully Automatic Cleaning
Plate heat exchangers (PHEs) are widely used in chemical, energy, and marine sectors due to their high thermal efficiency. However, over time, fouling (scale, sludge, and polymers) accumulates on plate surfaces, drastically reducing performance. Traditional cleaning methods—manual disassembly, soaking, and brushing—are labor-intensive (e.g., 4 workers taking 1 day per unit) and often damage gaskets.

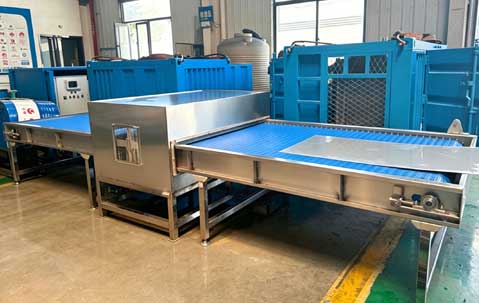

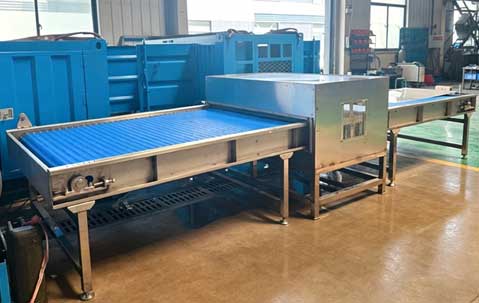

To solve this, the High-Pressure Water Automatic Cleaning Line for PHEs has been developed. This system integrates high-pressure water jet technology, PLC intelligent control, and automatic turnover conveying systems to achieve unmanned, high-precision cleaning.
Working Principle & Core Technology
This automatic line operates through a synergistic mechanism of intermittent conveying and positioning:

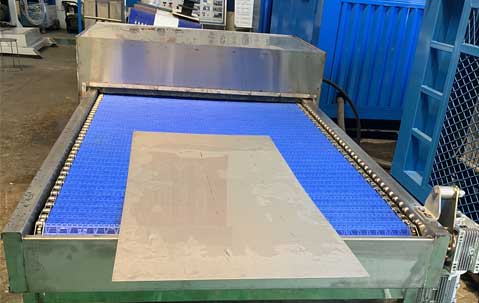

Auto Feeding & Positioning: Plates are transported via conveyor belt to the cleaning station, where high-precision sensors position them at the optimal angle.

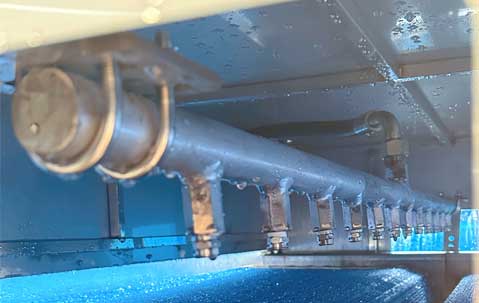

Dynamic High-Pressure Washing: The system utilizes movable nozzles that combine rotary dynamic flushing with fixed static flushing. For corrugated plates, nozzles track the groove path to eliminate dead zones.
Automatic Turnover: An integrated turnover mechanism uses a rotary disc and clamping components to flip the plate 180°, enabling double-side cleaning without manual intervention.
Wiping & Drying: The final stage includes sponge wipers and squeeze rollers to physically remove residue, ensuring a pristine surface.
Key Advantages
Radical Efficiency Boost: Increases efficiency by 2-3 times compared to manual soaking. Combined with online circulation, a team of 3 can clean 2-3 units per day.
No-Damage Cleaning: Precisely controlled high-pressure water (e.g., within safe limits of 0.5MPa) replaces hard steel brushes, protecting the passive film and anti-corrosion coating on plates.
Fully Automatic Operation: PLC and HMI touch screen control enable one-button start, automating loading, washing, flipping, and unloading—significantly reducing labor costs and safety risks.
Eco-Friendly: Pure physical cleaning minimizes or eliminates chemical use; wastewater can be treated centrally, aligning with green manufacturing standards.
Applications
Ideal for large-scale heating station maintenance, petrochemical plant turnarounds, and anti-biofouling in seawater desalination systems
