condenser tube pipe cleaning ultra high pressure water jet cleaner equipment

Product Details

Name

Details

Model

GYB-5-50/1500

Rate Pressure

1500 bar / 21750 psi

Water flow

50 L/min

Plunger diameter

22mm

Inpurt speed

1480 rpm

Pump speed

366 rpm

Plunger stroke

120 mm

Electric power

160kw, 3Phase, 380v/50Hz; IP55

PRODUCT PERFORMANCE

1. For the machine, pump is use the tech. of Germany WOMA.

2. Pressure is stable and reliable, easy to be adjust.

3. It is installed with a high-pressure alarm and high-temperature alarm for water conservation.

4. The high pressure gun is use the stainless steel material, Max pressure 1500bar

5. Has two filter, for inlet water filter out. Could be filter out the tiny particles from the inlet water. Good for long-working life of the pump.

6. Has explosion-proof system, could explosion-proof if you use this machine on chemical plant.

7. With a high-pressure alarm and high-temperature alarm for water conservation.

8. Could be used on starch factory, steel mill, chemical plant, power plant, for cleaning and maintenance.

CONFIGURATION LIST

Name

Quantity

High pressure hose

50 meters

High pressure gun

1 set

Fan-shaped nozzle

2 pcs

Cylinder-shaped nozzle

2 pcs

Flexible gun

10M

Flexible Gun Nozzle

4pcs

Steel Gun

1.5M

Steel Gun Nozzle

4pcs

Foot control Valve

1pc

Spare Parts

1 set

APPLICATION FIELD

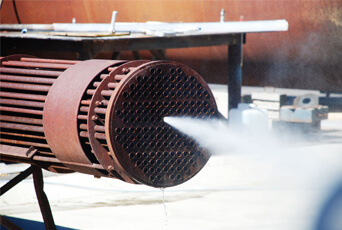

1.Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc…

2. Pipe pressure test, valve / hose pressure test, hydro pressure test, etc

3. Water injection

4. Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal

5. Construction industry, car/truck cleaning, mixing drum/tank cleaning, tar/cement/agglutinant cleaning, etc

6. Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc

7. Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.

8. Metallurgy plant, heat exchanger tube cleaning, boil, feed tank, warehouse dirt cleaning, descale removal

9. Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…
