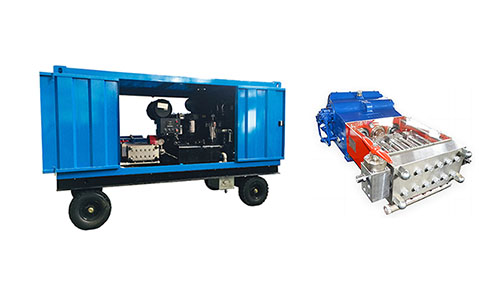

Hydro Blasting Equipment For Petrochemical

Product Details

Name

Details

Model

GYB-5-50/1500

Rate Pressure

1500bar(20kpsi)

Water flow

50L/min

Plunger diameter

26mm

Inpurt speed

1480 rpm

Pump speed

366 rpm

Plunger stroke

120 mm

Electric motor

160kw

Dimension

3200mm length*1600mm width*1700mm height

Main Features

1.High pressure pump introduced Germany KAMAT advanced technology;

2.Stainless steel pump head; Stainless steel nickel-plated plunger, forced water cooling;

3.The water seal is made of ductile iron imported from the United States;

4.Good heat dissipation, hard texture, not easy to deformation;

5.The crankcase at the power end is lubricated with forced lubrication, which reduces the temperature of the crankcase;

6.Smooth and reliable transmission, reduce friction coefficient, improve lubricity;

7.Pure high pressure water physical cleaning, no need to add any chemical agents when used, no pollution, is the national promotion of green environmental protection high-tech products.

CONFIGURATION LIST

high pressure hose

30M

cleaning nozzle

1set

High pressure gun

1pc

Flexible lance

1pc

Foot control valve

1set

APPLICATION FIELD

1.Industrial Pipe Cleaning

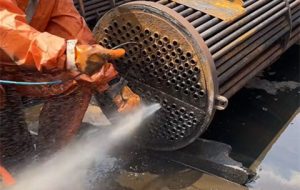

2.Heat Exchanger pipe Cleaning

3.Boiler Tube Cleaning

4.Petrochemical Plant Cleaning

5.Condenser cleaning

6.Evaporator cleaning

7.Pipe Descaling

High-pressure water jet technology is a common cleaning method used in petrochemical industry. The high-pressure water crushes the scale layer and peels off the scale. It is a device that can obtain high-pressure water through a high-pressure water pump driven by an electrical motor drive or a diesel engine. , flexible during cleaning, and has a remarkable effect on carbon scale or hard scale that cannot be removed by chemical cleaning.

The hydro blasting machine is the most commonly used cleaning machine for cleaning industrial equipment. Because of its high pressure and strong cleaning ability, it is widely used in the cleaning of industrial tubes, heat exchangers, evaporators, condensers and other equipment. It can also be used to clean the petrochemical industry to remove various difficult-to-clean hard scales.
