The conventional vibratory and impact-driven methods for steel sheet pile installation often face challenges in hard soil layers, dense sands, or weathered rock formations. High-pressure water jet (HPWJ) technology, integrated with pile driving, significantly reduces frictional resistance and enhances penetration efficiency.
Steel sheet piles are widely used in retaining walls, cofferdams, and marine structures. However, traditional methods (e.g., vibratory hammers, impact driving) struggle in hard clay, dense sand, or partially weathered rock, leading to pile damage, excessive noise, and prolonged construction time. High-pressure water jet-assisted pile driving addresses these issues by liquefying soil particles ahead of the pile tip, reducing side friction and end-bearing resistance

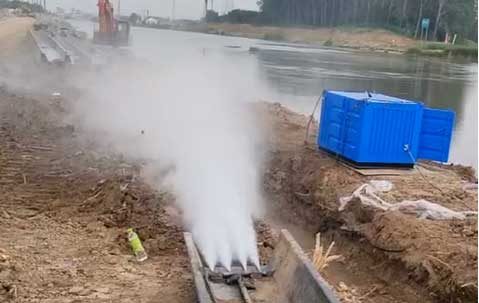

The high pressure water jet assisted pile driving system consists of:
High-pressure pump (110–280 bar) – Generates water jets at 220 L/min flow rates.

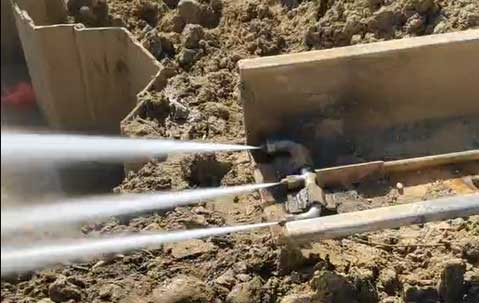

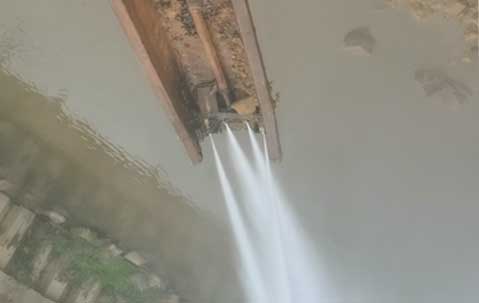

Water jet nozzles – Mounted at the pile toe to erode soil.
Diesel power unit – Ensures mobility and continuous operation.
Control system – Monitors pressure, flow, and safety parameters.
Working Principle
Water jets weaken soil structure by increasing pore pressure.
Simultaneous pile driving reduces resistance by 30–50%, enabling faster penetration.
Minimal vibration and noise compared to conventional methods.
Advantages
✅ Higher Efficiency – Penetration rates improve by 50%+ in dense soils.
✅ Reduced Equipment Stress – Lower hammer energy requirements extend pile service life.
✅ Cost Savings – Eliminates pre-drilling and reduces fuel consumption6.
✅ Environmental Benefits – Lower noise and vibration for urban projects.
High pressure water jet-assisted pile driving is a game-changer for steel sheet pile installation in difficult soils. Future adoption will expand as contractors recognize its cost, speed, and sustainability benefits.
